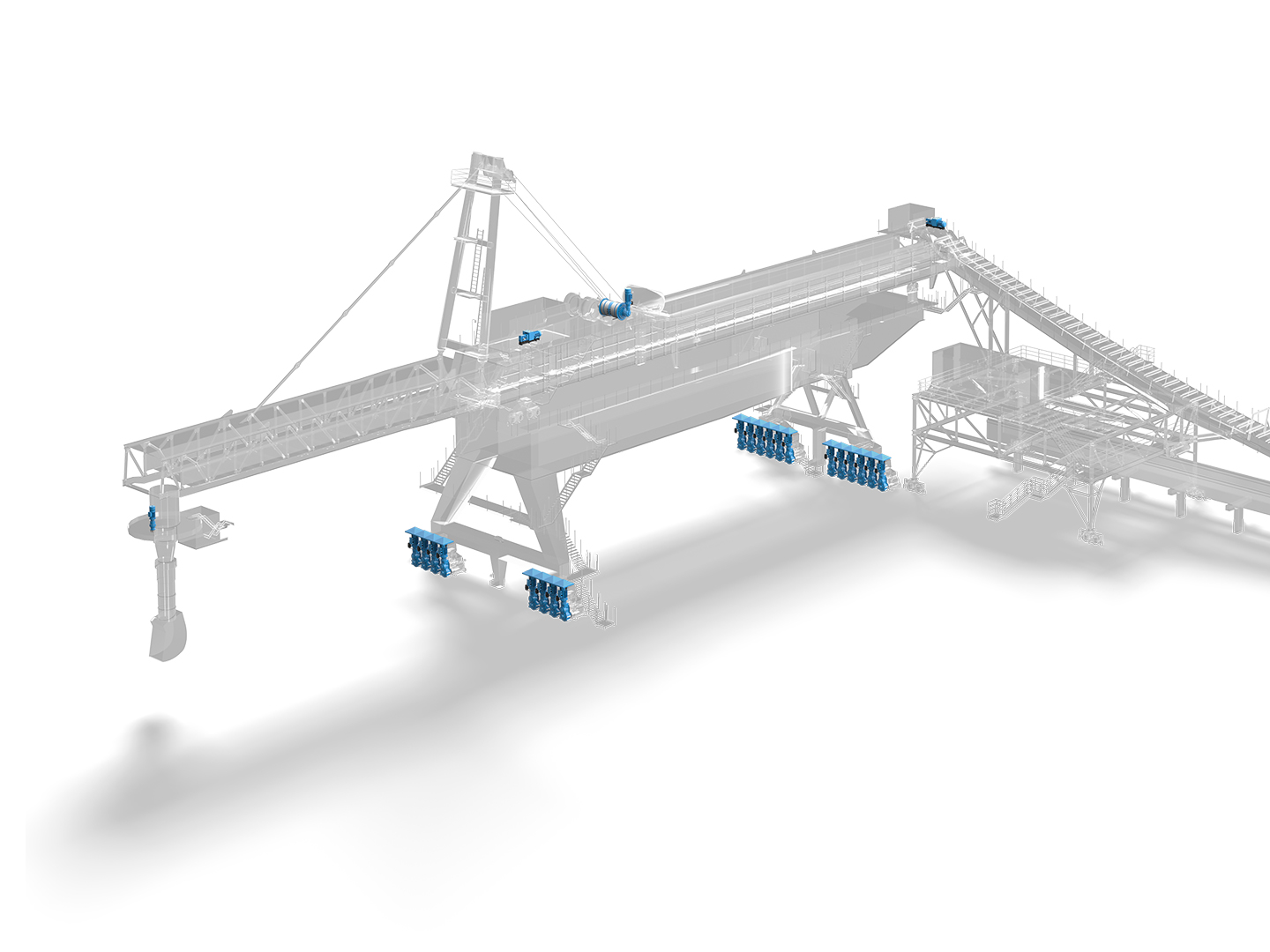

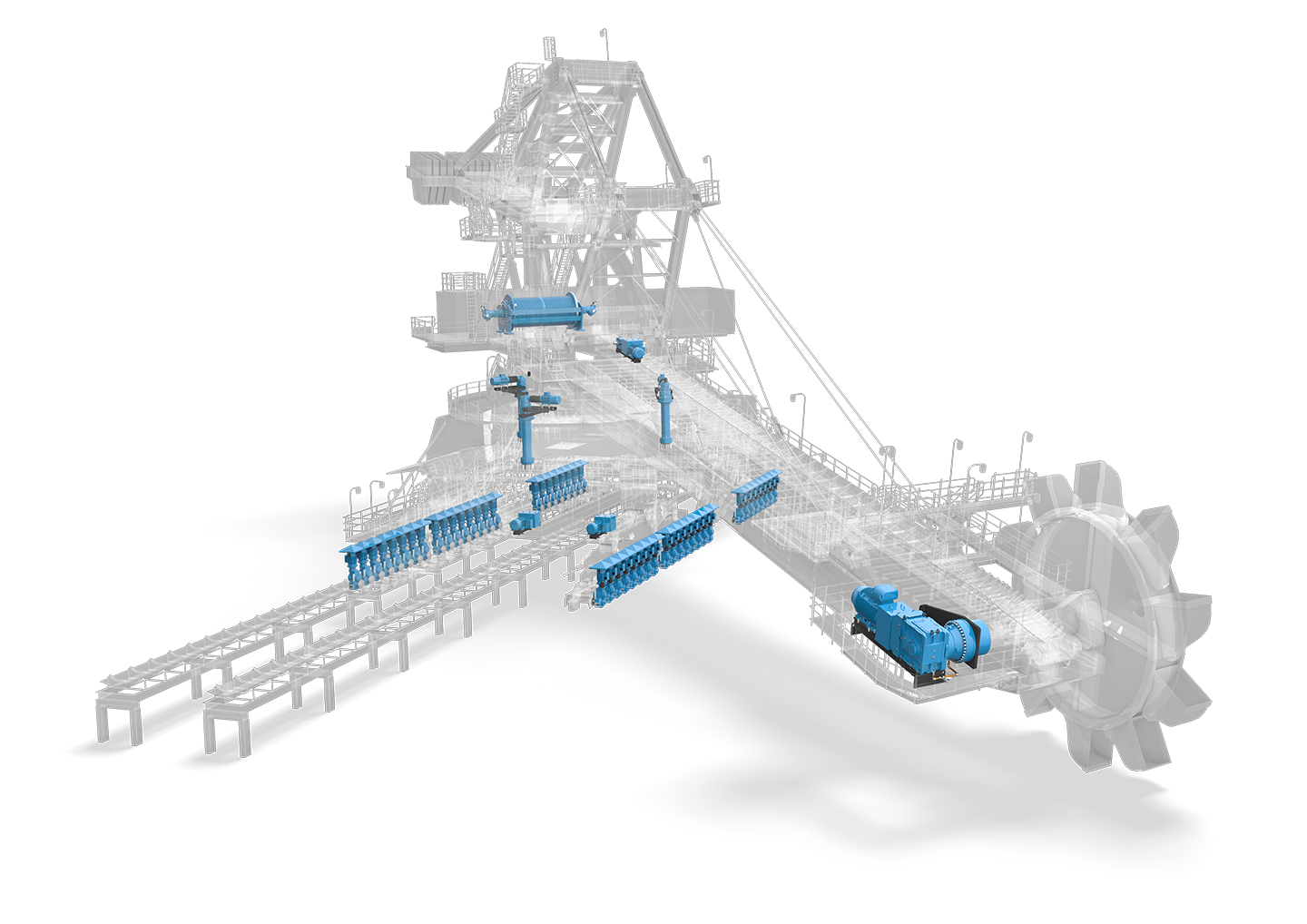

Ship Loaders

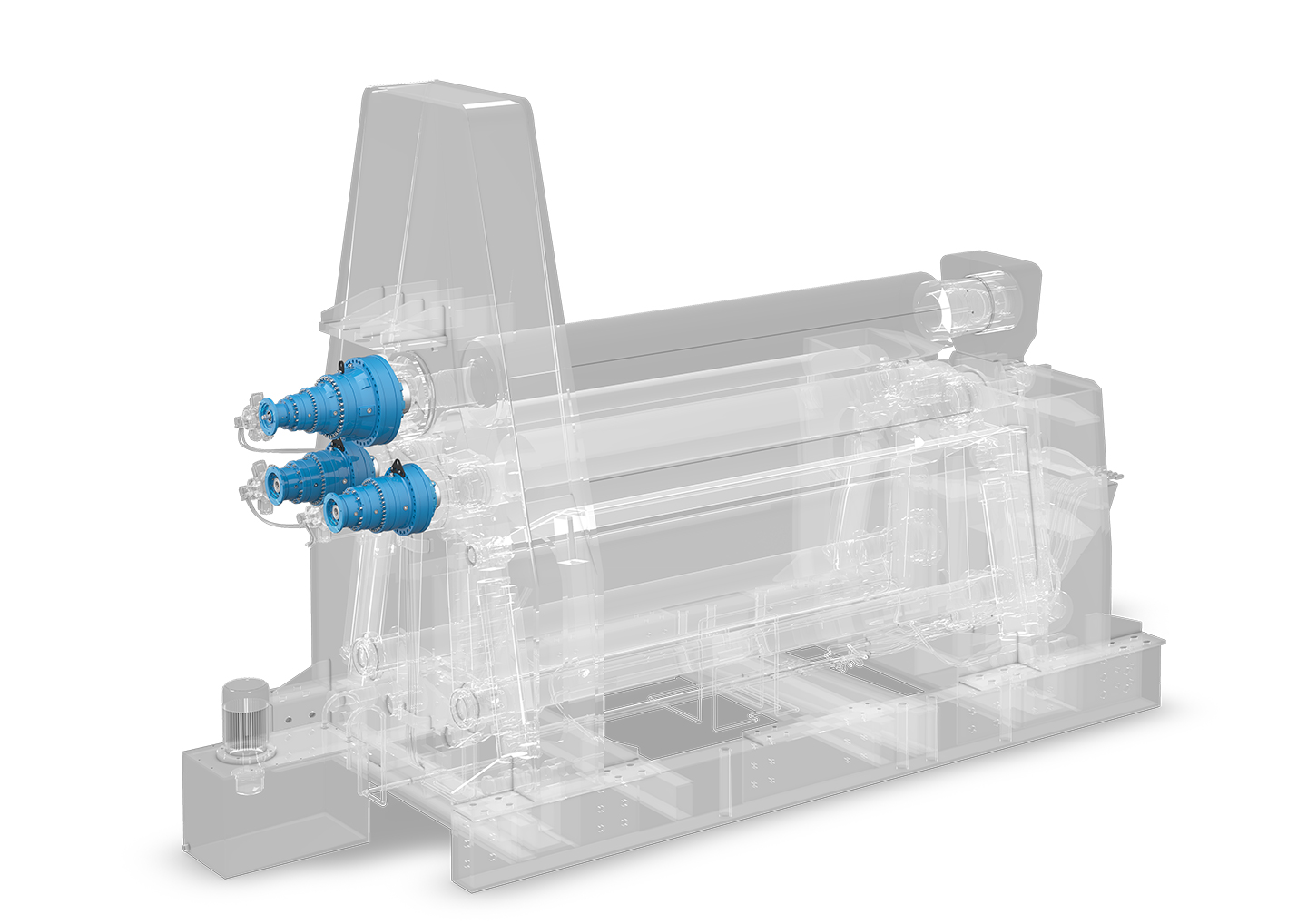

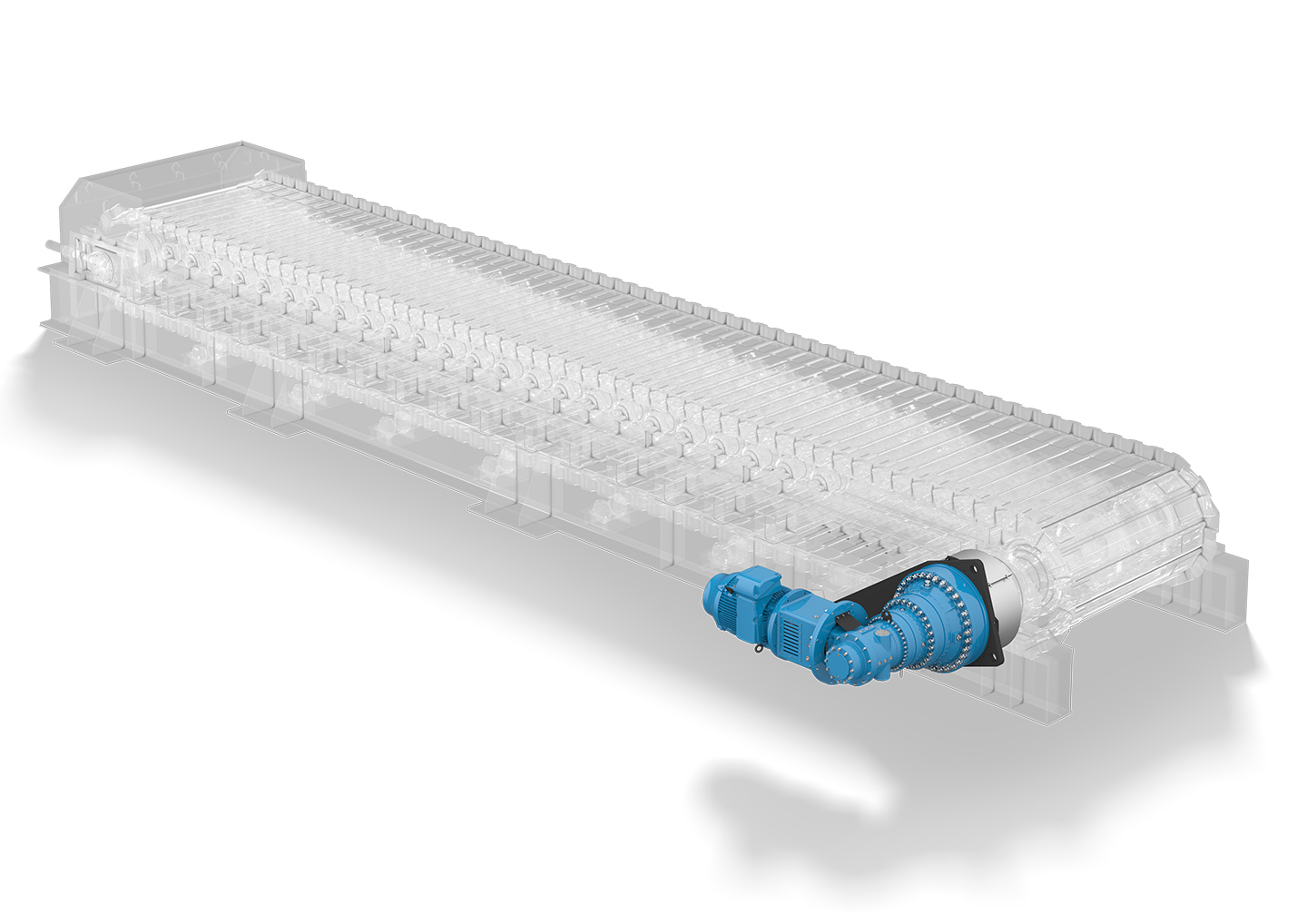

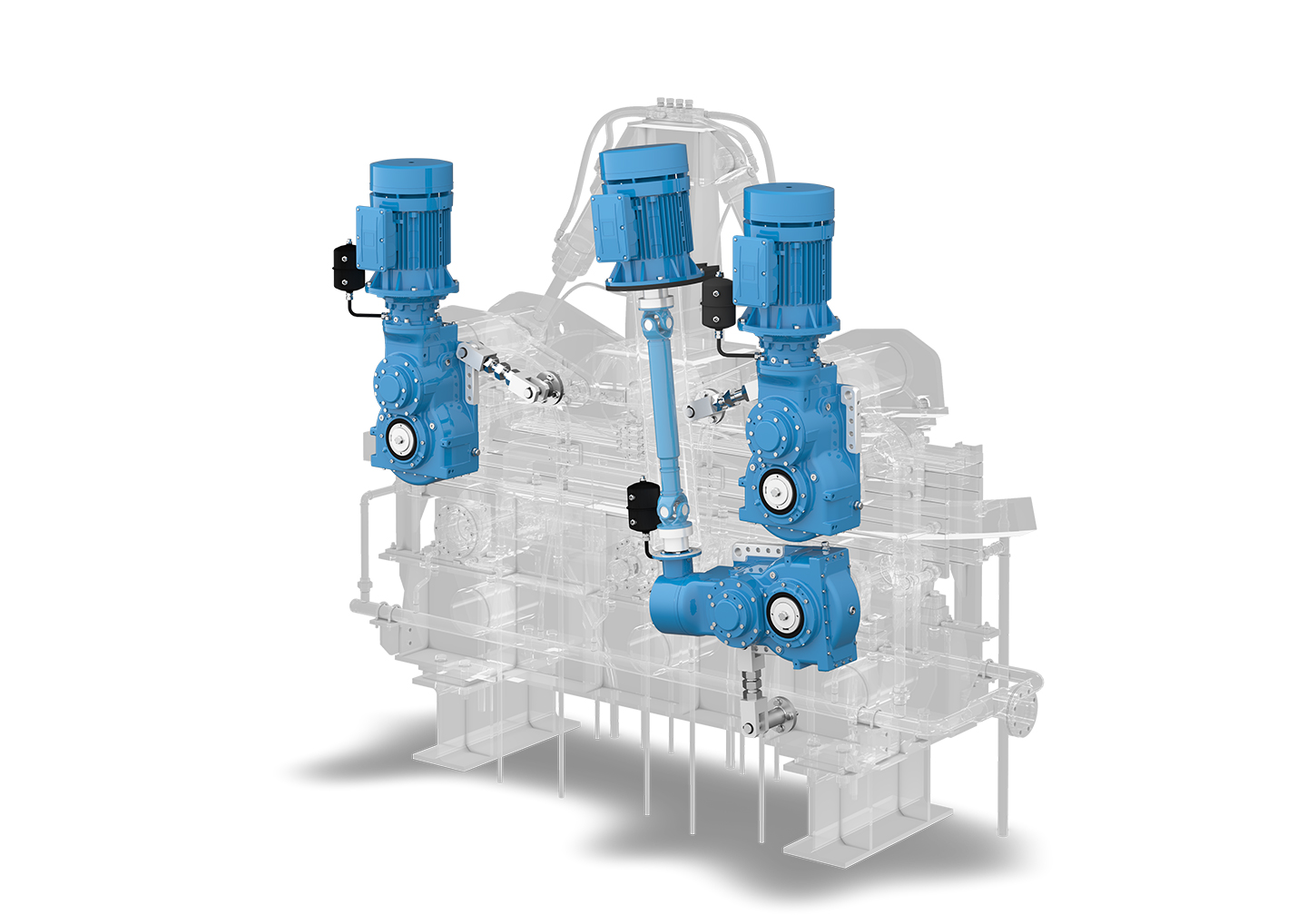

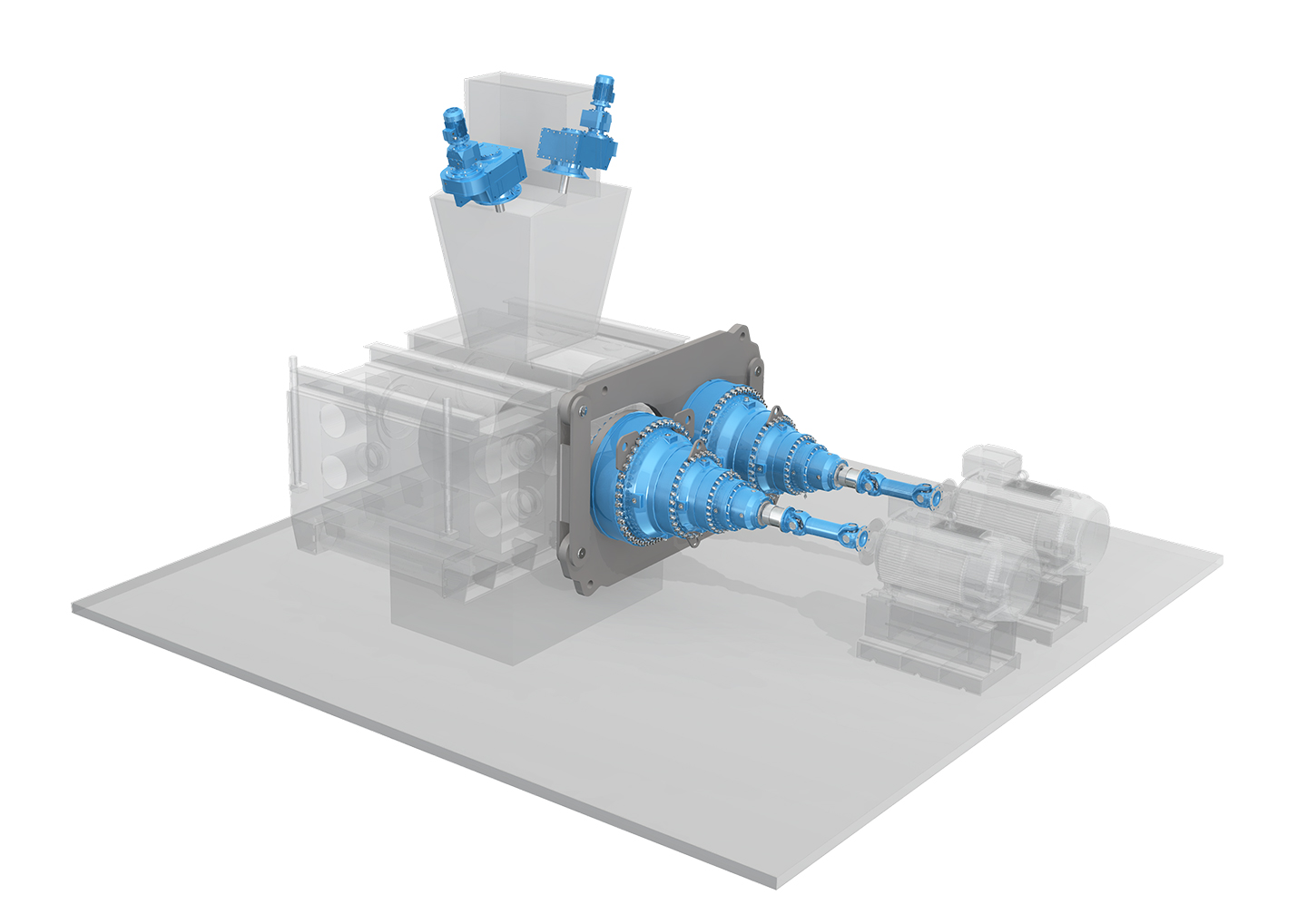

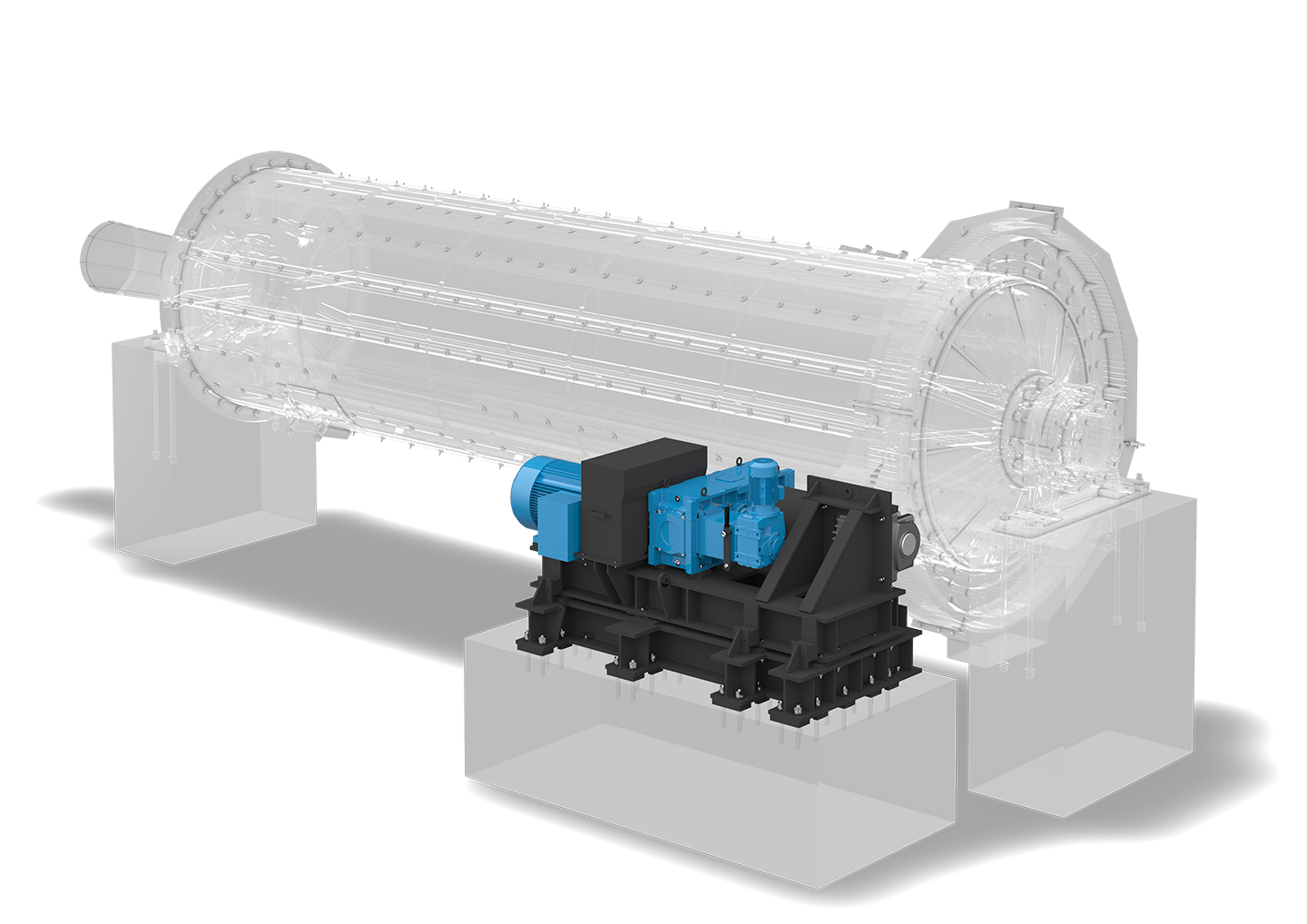

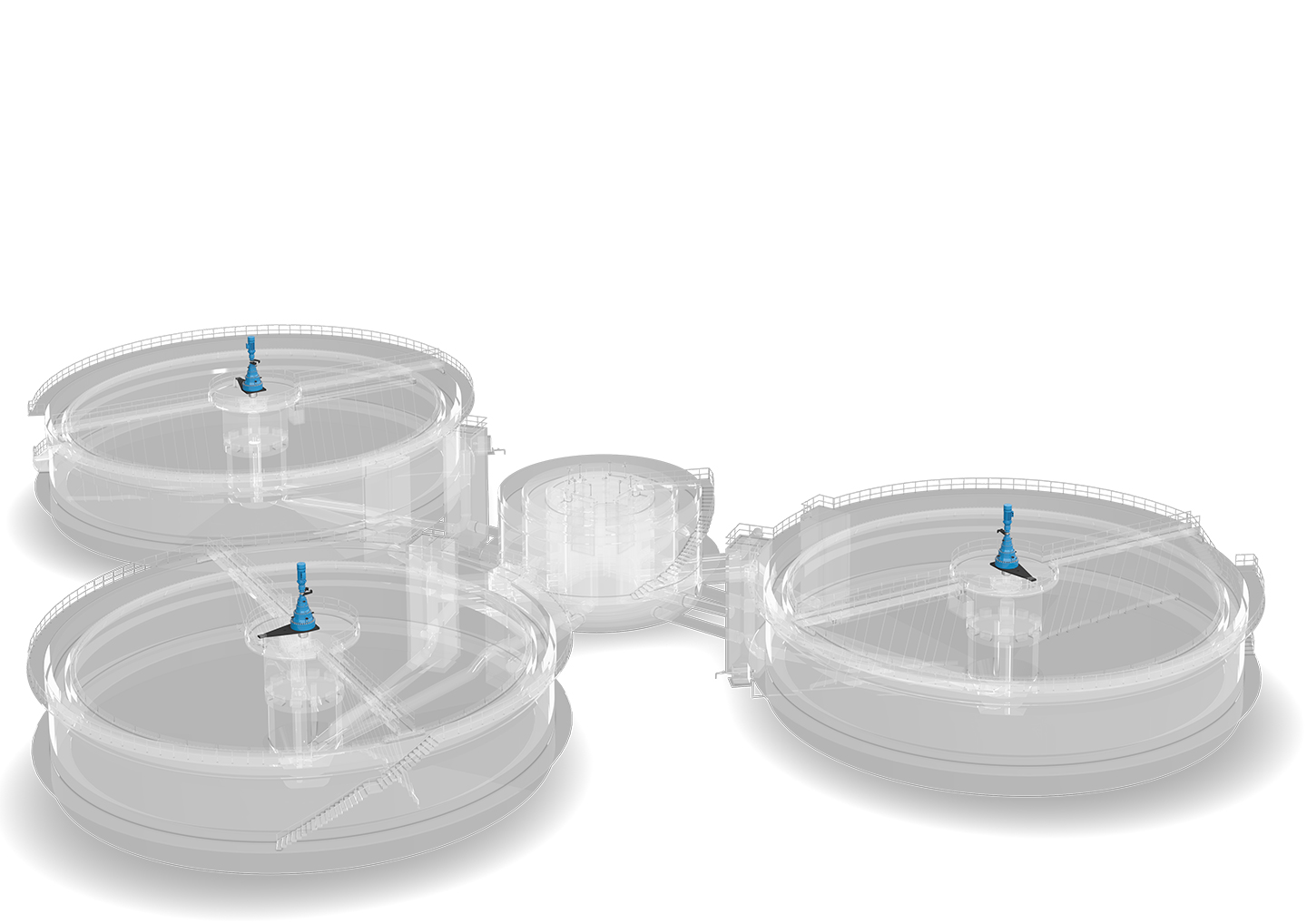

Powering Steel Transformation

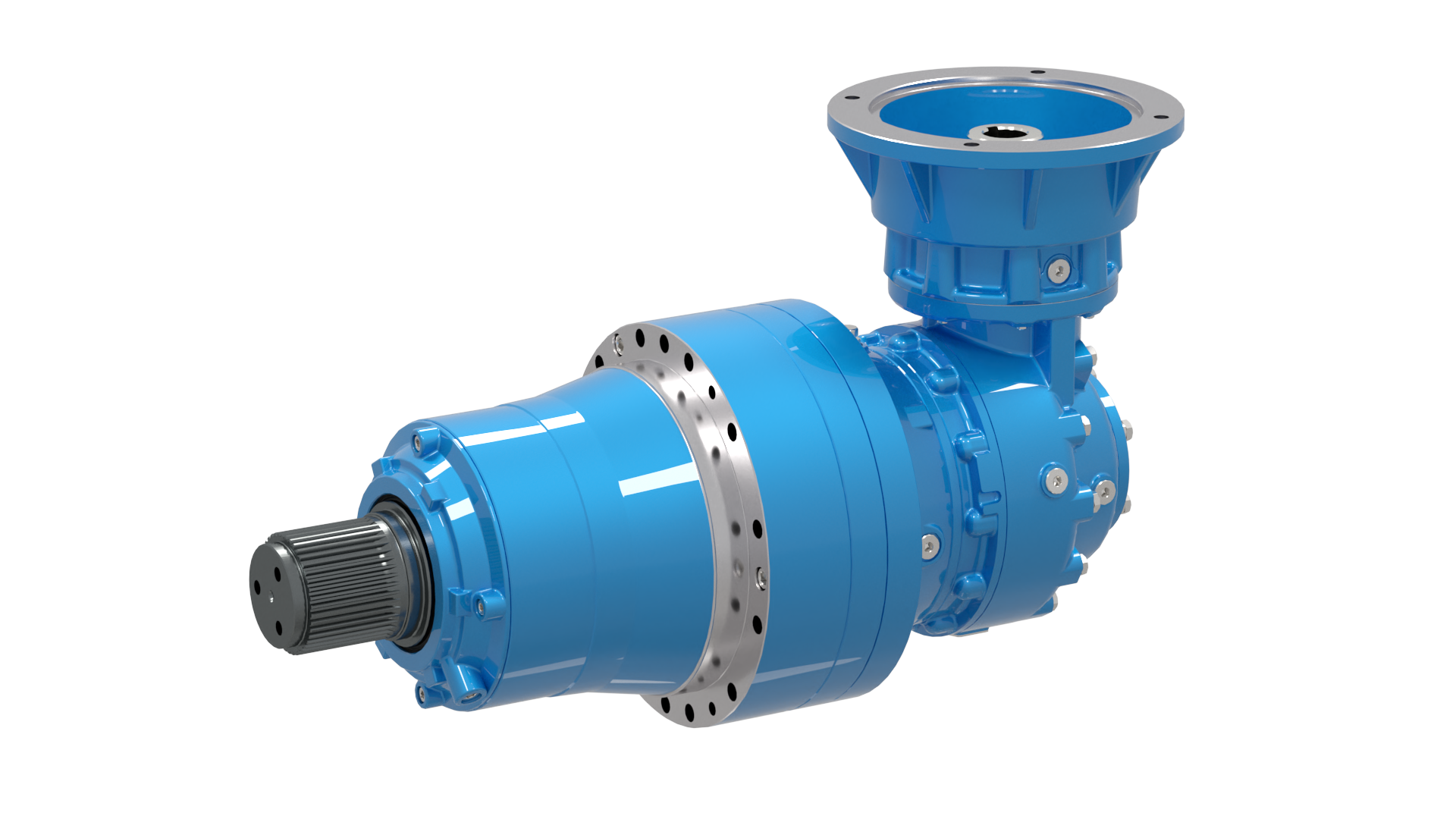

S Series
“S Series” epicyclic gear units are the
innovative proposal Dana offers the market,
improving the performance and appli- cation
characteristics that determined the big success
of the previous “PDL Series”, in production for
about 30 years.
In above all S sub-series we serve SL & SC series
|
Type |
TN [Nm] |
|
S300 |
34000 |
|
S400 |
48000 |
|
S600 |
64000 |
|
S850 |
90000 |
|
S1200 |
133000 |
|
S1800 |
190000 |
|
S2500 |
260000 |
|
S3500 |
370000 |
|
S5000 |
530000 |
|
S7500 |
735000 |
|
S300 |
S400 |
S600 |
|
SL3001 |
SL4001 |
SL6001 |
|
SL3002 – SC3002 |
SL4002 – SC4002 |
SL6002 |
|
SL3003 – SC3003 |
SL4003 – SC4003 |
SL6003 – SC6003 |
|
SL3004 – SC3004 |
SL4004 – SC4004 |
SL6004 – SC6004 |
|
S850 |
S1200 |
S1800 |
|
SL8501 |
SL12001 |
SL18001 |
|
SL8502 |
SL12002 |
SL18002 |
|
SL8503 – SC8503 |
SL12003 – SC12003 |
SL18003 |
|
SL8504 – SC8504 |
SL12004 – SC12004 |
SL18004 – SC18004 |
|
S2500 |
S3500 |
|
|
SL25001 |
SL35001 |
|
|
SL25002 |
SL35002 |
|
|
SL25003 |
SL35003 |
|
|
SL25004 – SC25004 |
SL35004 – SC35004 |
|
|
S5000 |
S7500 |
|
|
SL50003 |
SL75003 |
|
|
SL50004 – SC50005 |
SL75004 – SC75005 |
Industrial Series
Industrial Series planetary gearboxes with its modularity, wide range of characteristics and
variants, allows to meet every possible application needs for both Industrial and Mobile applications.
|
Type |
TN [Nm] |
|
010 |
1000 |
|
020 |
2100 |
|
030 |
3800 |
|
040 |
3800 |
|
045 |
3800 |
|
046 |
3800 |
|
065 |
6400 |
|
067 |
6400 |
|
090 |
9200 |
|
091 |
9200 |
|
150 |
13000 |
|
155 |
13000 |
|
250 |
20000 |
|
255 |
20000 |
|
320 |
25000 |
| 010 | 020 | 030 | |
| EM 1010 | EM 1020 | ED 2030 | |
| ED 2010 | ED 2020 | ET 3030 | |
| ET 3010 | ET 3020 | EQ 4030 | |
| EC 2010 – PDA 2010 | EQ 4020 | EC 3030 – PDA 3030 | |
| EC 3010 – PDA 3010 | EC 2020 – PDA 2020 | EC 4030 – PDA 4030 | |
| EC 4010 – PDA 4010 | EC 3020 – PDA 3020 | ||
| EC 4020 – PDA 4020 | |||
| 040 | 045 | 046 | |
| ED 2040 | EM 1045 | EM 1046 | |
| ET 3040 | ED 2045 | ED 2046 | |
| EQ 4040 | ET 3045 | ET 3046 | |
| EC 3040 – PDA 3040 | EQ 4045 | EQ 4046 | |
| EC 4040 – PDA 4040 | EC 2045 – PDA 2045 | EC 2046 – PDA 2046 | |
| EC 3045 – PDA 3045 | EC 3046 – PDA 3046 | ||
| EC 4045 – PDA 4045 | EC 4046 – PDA 4046 | ||
| 091 | 320 | ||
| EC 2091 – PDA 2091 | ED 2320 | ||
| ET 3320 | |||
| 150 | 155 | 250 | 255 |
| EM 1150 | ED 2155 | EM 1250 | ED 2255 |
| ED 2150 | ET 3155 | ED 2250 | ET 3255 |
| ET 3150 | EC 3155 – PDA 3155 | ET 3250 | EQ 4255 |
| EQ 4150 | EQ 4250 | EC 3255 | |
| EC 2150 – PDA 2150 | EC 2250 | EC 4255 | |
| EC 3150 – PDA 3150 | EC 3250 | ||
| EC 4150 – PDA 4150 | EC 4250 |
